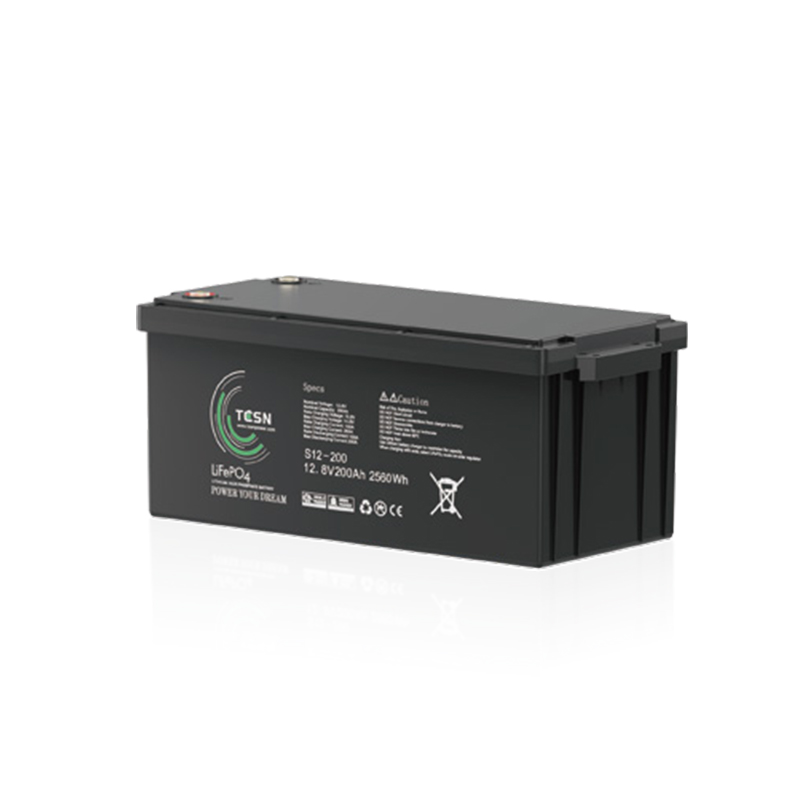

Megrez Series - Lead-Acid Replacement Batteries

Megrez Series

The Megrez Series maintains the physical form factor of standard lead-acid batteries while delivering the performance of lithium-ion — covering 12V, 24V, 36V, and 48V voltage ranges. Designed as a direct, no-modification replacement for lead-acid across RVs, marine, small UPS, AGVs, solar storage, and low-speed EV applications.

Get the Megrez Series Price

Model	Voltage (V)	Capacity (Ah)	Dimensions (WLH)	Weight (Kg)	Bluetooth	CAN	RS485	Heating	Active Balancing
S12-100	12.8	100	306171215	10.5	P	P	P	P	P
S12-100A	12.8	100	330171220	11	P	P	P	P	P
S12-150	12.8	150	330171220	15.5	P	P	P	P	P
S12-200	12.8	200	522238223	20.5	P	P	P	P	P
S12-200B	12.8	200	552110288	20	P	P	P	P	P
S12-230	12.8	230	522238223	22	P	P	P	P	P
S12-230M	12.8	230	367190245	21.5	P	P	P	P	P
S12-300	12.8	300	522238223	27	P	P	P	P	P
S12-300M	12.8	300	367190245	27	P	P	P	P	P
S12-460	12.8	460	522238223	40	P	P	P	P	P
S24-50	25.6	50	306171215	10.5	P	P	P	P	P
S24-100	25.6	100	522238223	20.5	P	P	P	P	P
S24-200	25.6	200	522238223	39	P	P	P	P	P
S48-100	51.2	100	522238223	39	P	P	P	P	P
E6-6	6.4	6	477096	0.4	N	N	N	N	N
E6-8	6.4	8	1515093	0.54	N	N	N	N	N
E6-12	6.4	12	1515093	0.66	N	N	N	N	N
E12-6	12.8	6	9070101	0.66	N	N	N	N	N
E12-8	12.8	8	1516597	1.1	N	N	N	N	N
E12-12	12.8	12	1516597	1.3	N	N	N	N	N
E12-30	12.8	30	18170156	3	N	N	N	N	N
E12-40	12.8	40	174165125	4.5	N	N	N	N	N
E12-50	12.8	50	165126175	5.8	N	N	N	N	N
E12-60	12.8	60	198166170	6.8	N	N	N	N	N
E12-75	12.8	75	198166170	7.9	N	N	N	N	N
E12-100	12.8	100	260168209	9.5	N	N	N	N	N
E12-100B	12.8	100	395110293	10.5	N	N	N	N	N
E12-150	12.8	150	330171220	15.5	N	N	N	N	N
E12-200	12.8	200	483170240	18.5	N	N	N	N	N
E12-200B	12.8	200	552110288	20	N	N	N	N	N
E12-300	12.8	300	367190245	27	N	N	N	N	N
E12-400	12.8	400	522238223	37	N	N	N	N	N

The Megrez Series maintains the physical form factor of standard lead-acid batteries while delivering the performance of lithium-ion. Covers 12V, 24V, 36V, and 48V voltage ranges. Designed as a direct, no-modification replacement for lead-acid across multiple applications.

No data sheet available for this product.
