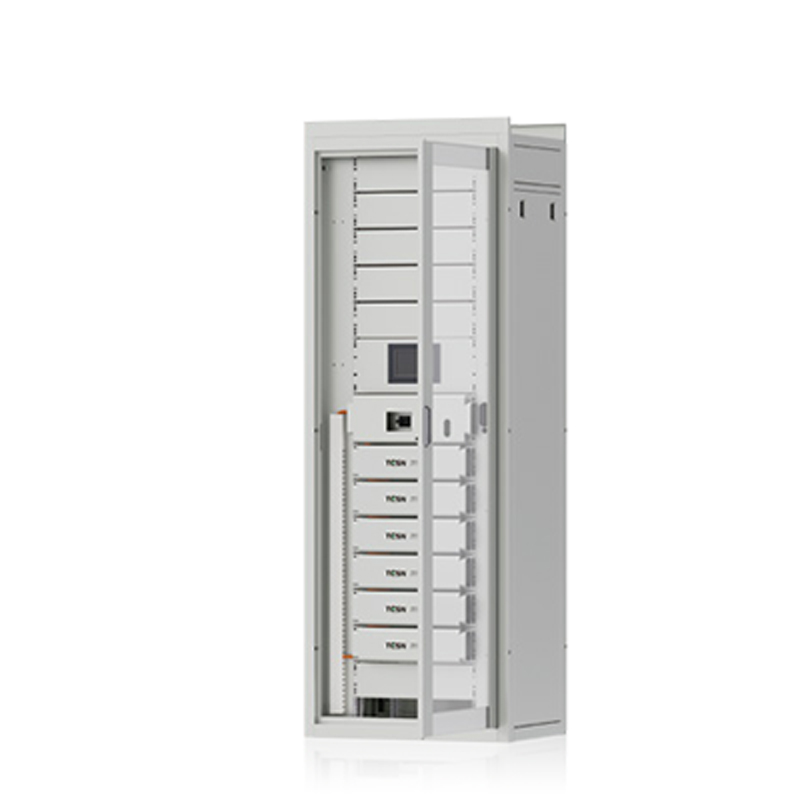

ZC DC Power Screen: high capacity, high safety, self-developed intelligent BMS system, providing stable power for DC loads. Widely used in DC loads such as switchgears, circuit breakers, and relay protection.
Hassle-free & long-lasting: Cycle life >4000 cycles (80% DOD), Design life: 20 years.
Modular design: Simple assembly, Quick installation.
Multiple series and parallel: Ease of capacity expansion, supports series and parallel connections.
Integrated functions: Smart balancing, Good consistency, Multiple comms options.
| Model | Voltage (V) | Capacity (Ah) | Dimensions W*D*H (mm) | Weight (Kg) | Max Continuous Discharge Power | Communication |
|---|---|---|---|---|---|---|
| ZC115-100D | 115.2 | 100 | 442*820*250 | 92 | 11kW | RS485/CAN |
| ZC115-150D | 115.2 | 150 | 600*1000*1165 | 235 | 17kW | RS485/CAN |
| ZC115-200D | 115.2 | 200 | 600*1000*1165 | 275 | 23kW | RS485/CAN |
| ZC230-100D | 230.4 | 100 | 800*600*2260 | 380 | 23kW | RS485/CAN/TCPIP |
| ZC230-150D | 230.4 | 150 | 800*600*2260 | 440 | 34.5kW | RS485/CAN/TCPIP |
| ZC230-200D | 230.4 | 200 | 800*600*2260 | 570 | 46kW | RS485/CAN/TCPIP |
ZC DC Power Screen: high capacity, high safety, self-developed intelligent BMS system, providing stable power for DC loads. Widely used in DC loads such as switchgears, circuit breakers, and relay protection.
No data sheet available for this product.
