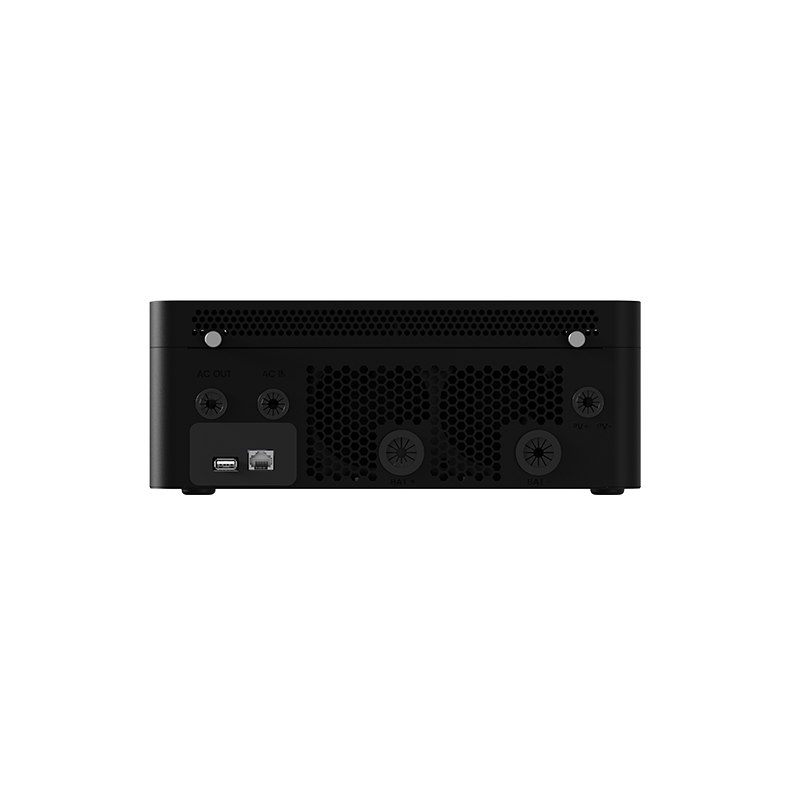

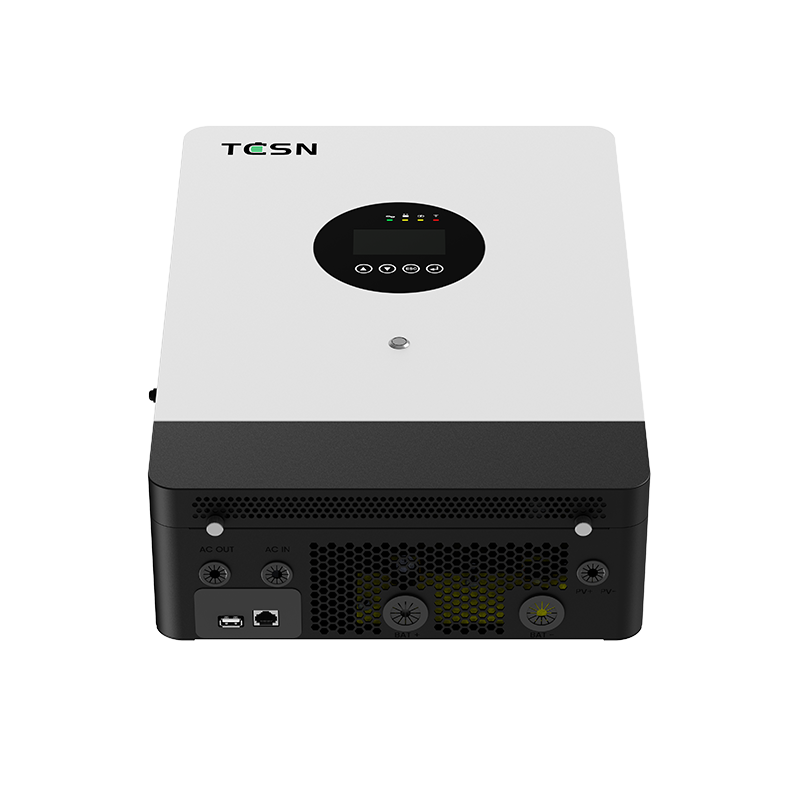

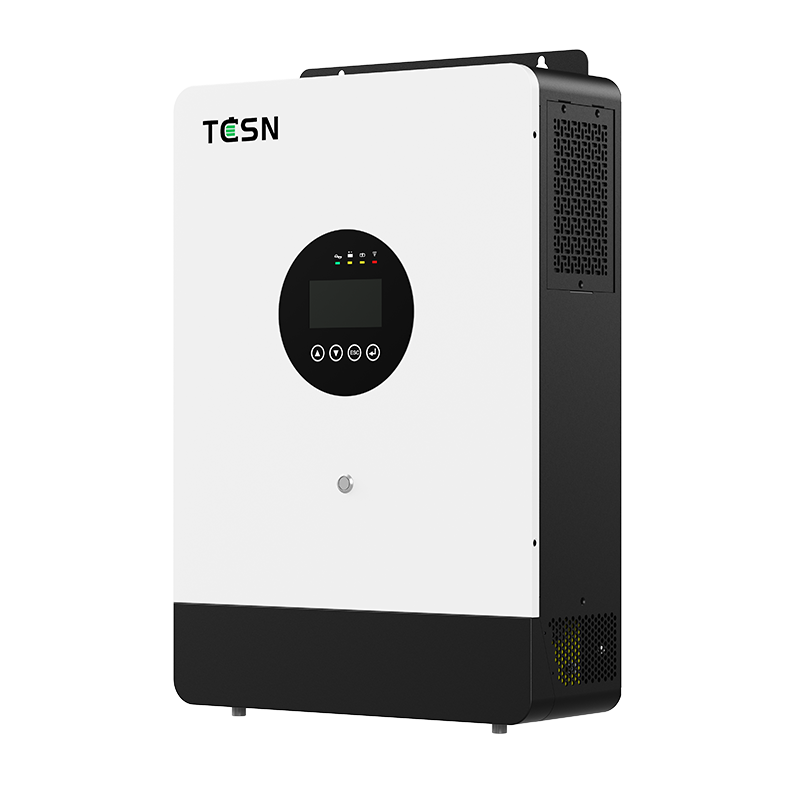

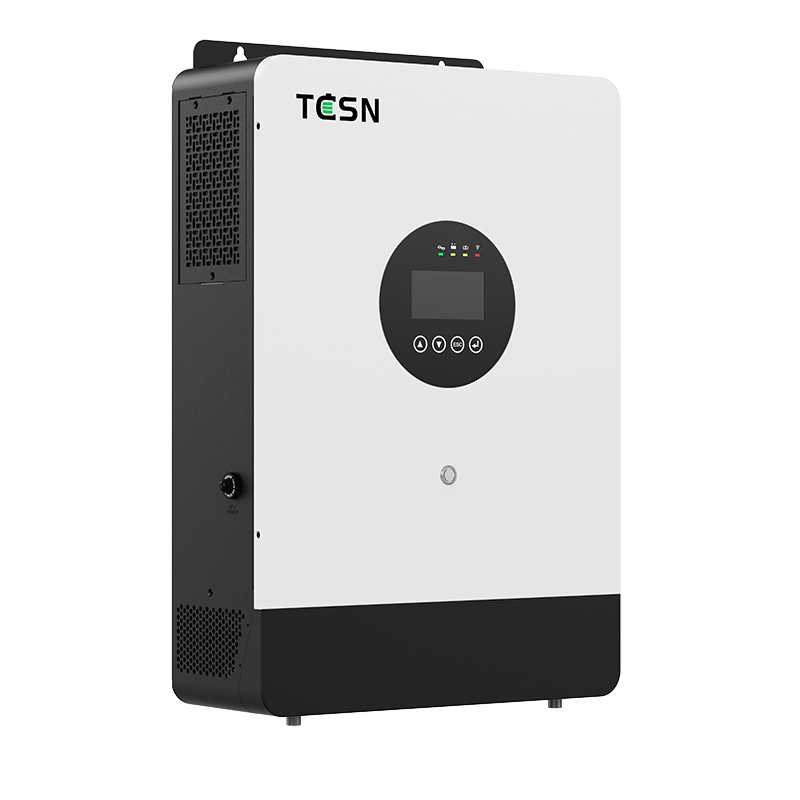

Merak SPI Series_TCSN Power Technology (Shenzhen) Co.,Ltd

Model	Merak SPI B24-3K	Merak SPI B48-6K	Merak SPI B48-12K
AC Input
Rated Input Voltage (VAC)	208/220/230/240/L+N+PE
Voltage Range (VAC)	90~280±3 (normal mode) ; 170~280±3 (UPS mode)		220/230:L+N+PE
Frequency (Hz)	40~70 (Default)		50Hz/60Hz (Auto detection)
AC Output
Rated Capacity (kW)	3.6	6.2	12
Voltage Regulation	≤5%
Rated Voltage (VAC)	208/220/230/240:L+N+PE		230:L+N+PE
Power Factor (PF)	1
Frequency (Hz)	Line Mode: Synchronized range, Battery Mode: 50/60Hz±0.1%		50Hz±0.3Hz/60Hz±0.3Hz
Transfer Time (ms)	10ms(Typical)
Harmonic Distortion	≤3% (Non-linear Load PF=0.7)		≤5%
Overload Capacity (Battery Mode)	60s@102%~110%load;10s@110%~130%load;300ms@130%~150%load;>150%load	(102% ~ load<125%) ±10% report error and turn off the output after 5 minutes, (125% ~ load < 150%) ±10% report error and turn off the output after 10 seconds, Load >150% ±10% report error and turn off the output after 5 seconds
Max Efficiency (Battery Mode)	92.7%@24VDC		94%@48VDC
Parallel Operation	Nonsupport		No/1-6
Charger (PV/AC)
Solar Charger Type	MPPT
Max PV Input Power (W)	5000	6500	9000+9000
PV Voltage Accuracy	±2%
MPPT Tracking Range (VDC)	40~450		90~450
Efficiency	99.5 MAX
Max PV Voltage (VDC)	500
Max PV Current (A)	100	100A(Can Be Set)	150A(Can Be Set)
Charger (AC Mode)
Max AC Charging Current (A)	100	80A(Can Be Set)	150A(Can Be Set)
Charging Voltage (VDC)	Settable:28~29V	54.4V~55.2V
Battery
Battery Type	Lithium-ion/VRLA/Custom
Overvoltage Protection (VDC)	30.5		60
Undervoltage Protection (VDC)	21		40
Interface
HMI	LCD
Monitoring	WiFi(Optional)
General Data
Waterproof Rating	IP20
Operating Temperature	0~50℃		-10℃~50℃
Relative Humidity	20%~95%(Non-condensing)
Storage Temperature	-15℃~60℃	-25℃~60℃
Weight (kg)	8.8	8.4	18.7
Dimensions (WDH)	315×456×120mm	305×416×120mm	365×550×140mm
Max Operating Altitude	4000m(Derating above 1000m)
Noise	≤50dB		≤60dB
