TCSN power uses lithium-ion cells on the basis of retaining the appearance of standard lead-acid batteries to develop high-energy density, high-safety, and intelligent lithium-ion battery products.
Covers multiple voltage ranges such as 12V, 24V, 48V, etc. The product supports 6units in series and multiple groups in parallel; complete models; long service timesupports multiple customizations, and provide users with a full range of energysolutions.
| Model | Voltage (V) | Capacity(Ah) | Dimension (W*L*H) | Weight(Kg) | Bluetooth | CAN | RS485 | Heating | LCD | Active equalization |
| E6-6 | 6.4 | 6 | 47*70*96 | 0.4 | N | N | N | N | N | N |
| E6-8 | 6.4 | 8 | 151*50*93 | 0.54 | N | N | N | N | N | N |
| E6-12 | 6.4 | 12 | 151*50*93 | 0.66 | N | N | N | N | N | N |
| E12-6 | 12.8 | 6 | 90*70*101 | 0.66 | N | N | N | N | N | N |
| E12-8 | 12.8 | 8 | 151*65*97 | 1.1 | N | N | N | N | N | N |
| E12-12 | 12.8 | 12 | 151*65*97 | 1.3 | N | N | N | N | N | N |
| E12-30 | 12.8 | 30 | 181*70*156 | 3 | N | N | N | N | N | N |
| E12-40 | 12.8 | 40 | 174*165*125 | 4.5 | N | N | N | N | N | N |
| E12-50 | 12.8 | 50 | 165*126*175 | 5.8 | N | N | N | N | N | N |
| E12-60 | 12.8 | 60 | 198*166*170 | 6.8 | N | N | N | N | N | N |
| E12-75 | 12.8 | 75 | 198*166*170 | 7.9 | N | N | N | N | N | N |
| E12-100M | 12.8 | 100 | 260*168*209 | 9.5 | N | N | N | N | N | N |
| E12-100 | 12.8 | 100 | 260*168*209 | 9.5 | N | N | N | N | N | N |
| E12-100B | 12.8 | 100 | 395*110*293 | 10.5 | N | N | N | N | N | N |
| E12-150 | 12.8 | 150 | 330*171*220 | 15.5 | N | N | N | N | N | N |
| E12-200 | 12.8 | 200 | 483*170*240 | 18.5 | N | N | N | N | N | N |
| E12-200B | 12.8 | 200 | 552*110*288 | 20 | N | N | N | N | N | N |
| E12-300 | 12.8 | 300 | 345*190*245 | 27 | N | N | N | N | N | N |
| E12-400 | 12.8 | 400 | 522*238*223 | 37 | N | N | N | N | N | N |
| EV12-100E | 12.8 | 100 | 318*175*189 | 10 | N | N | N | N | N | N |

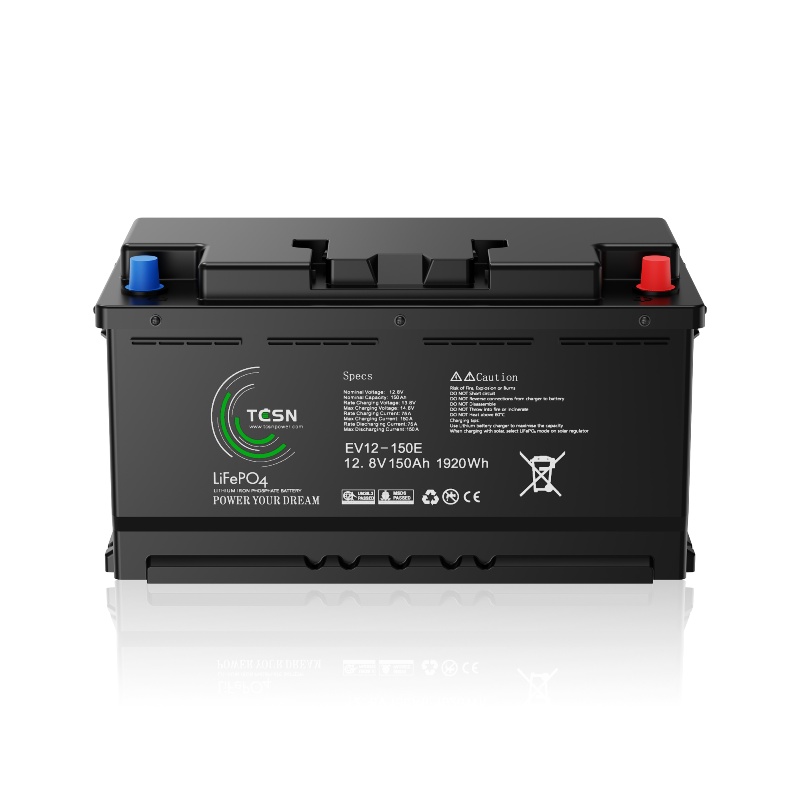

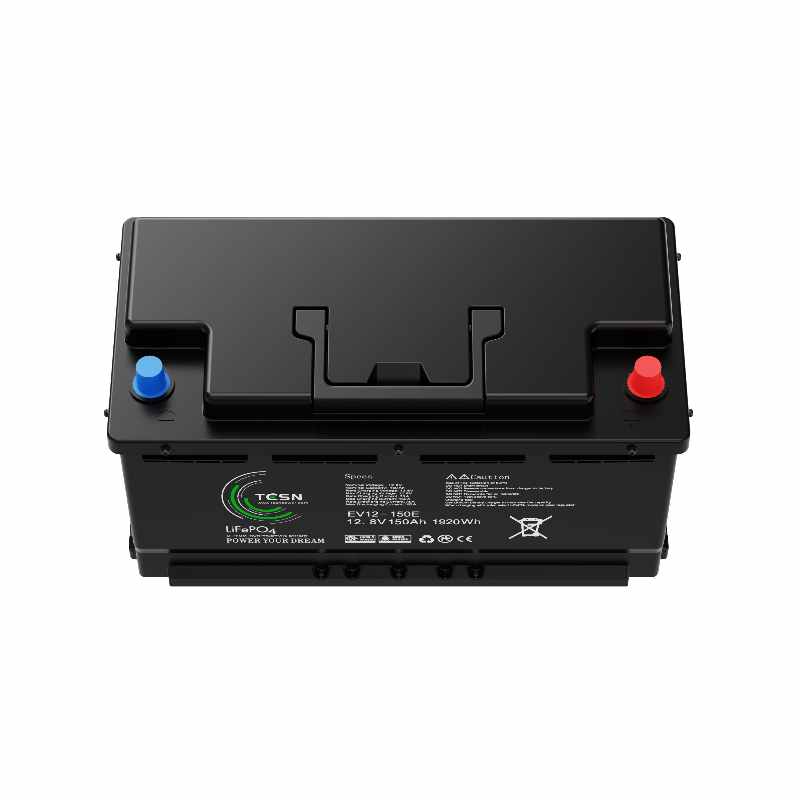

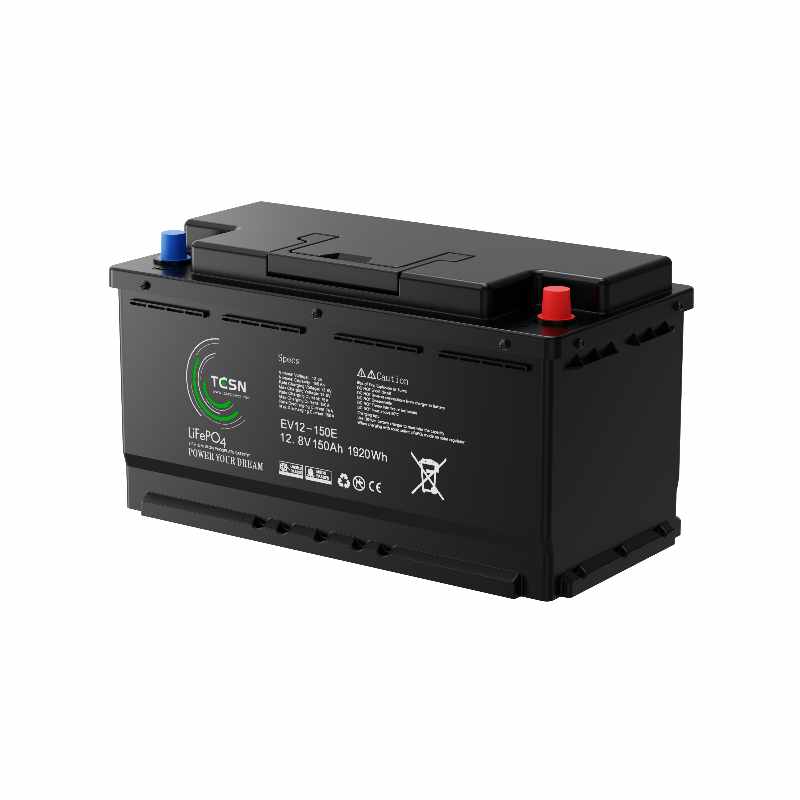

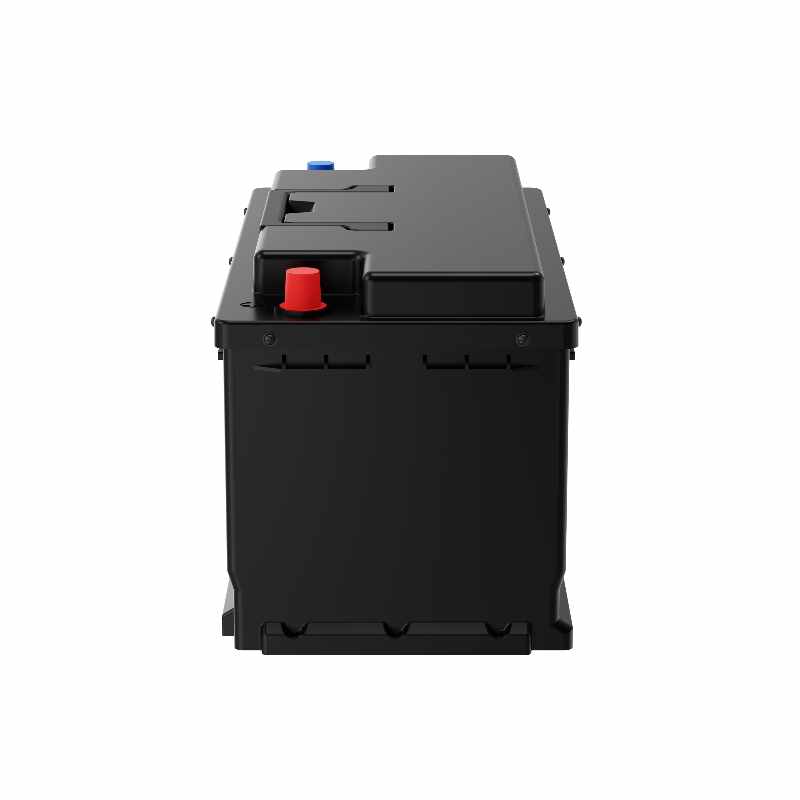

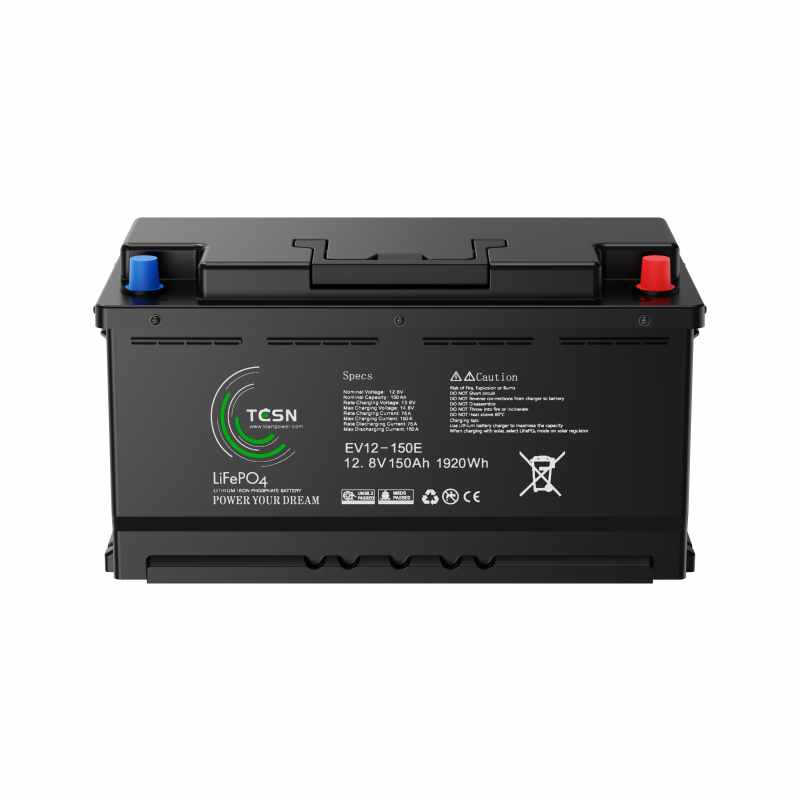

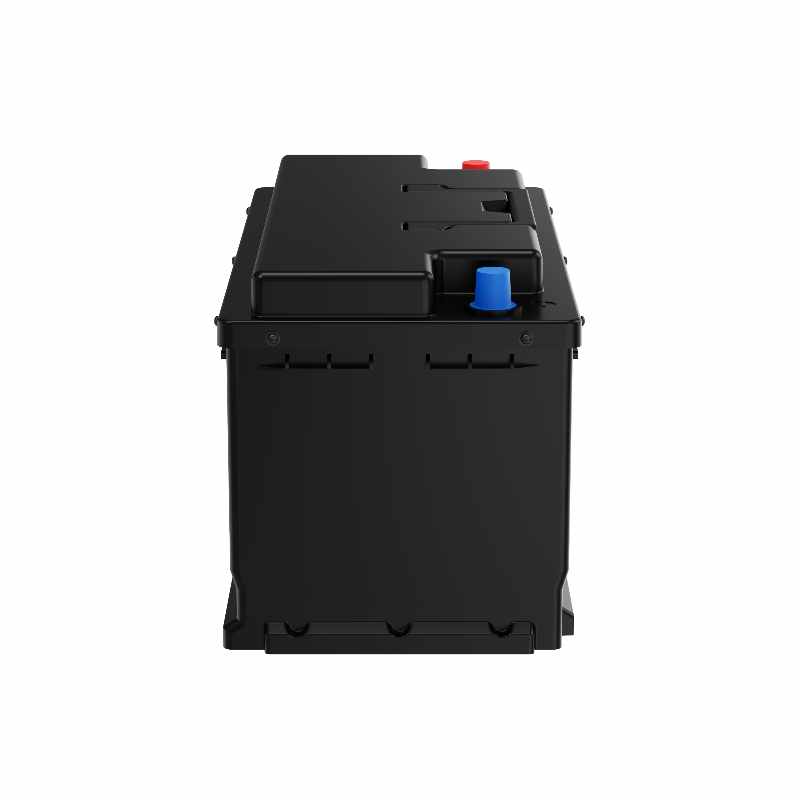

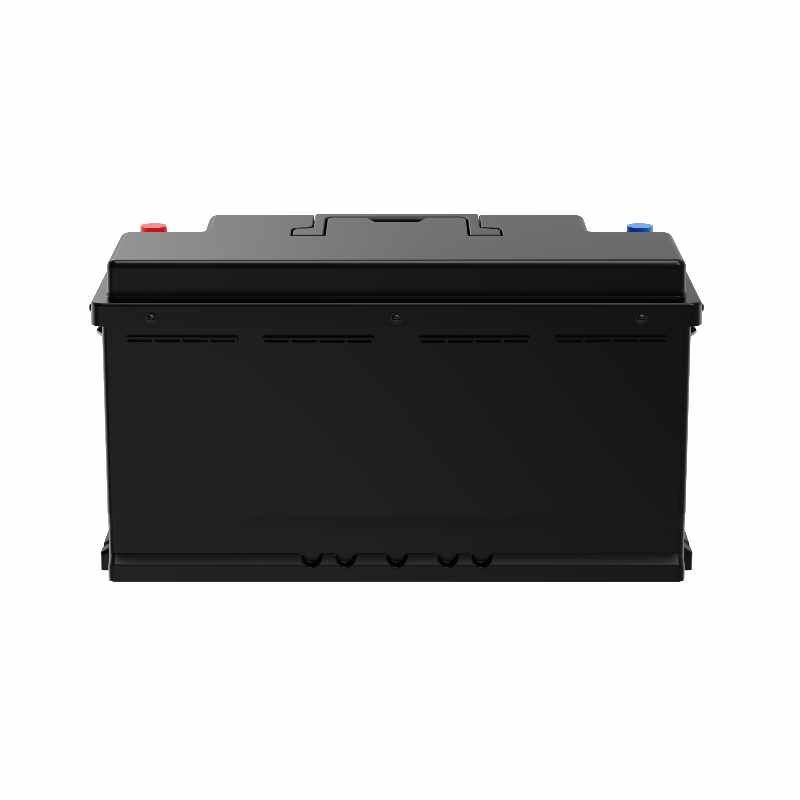

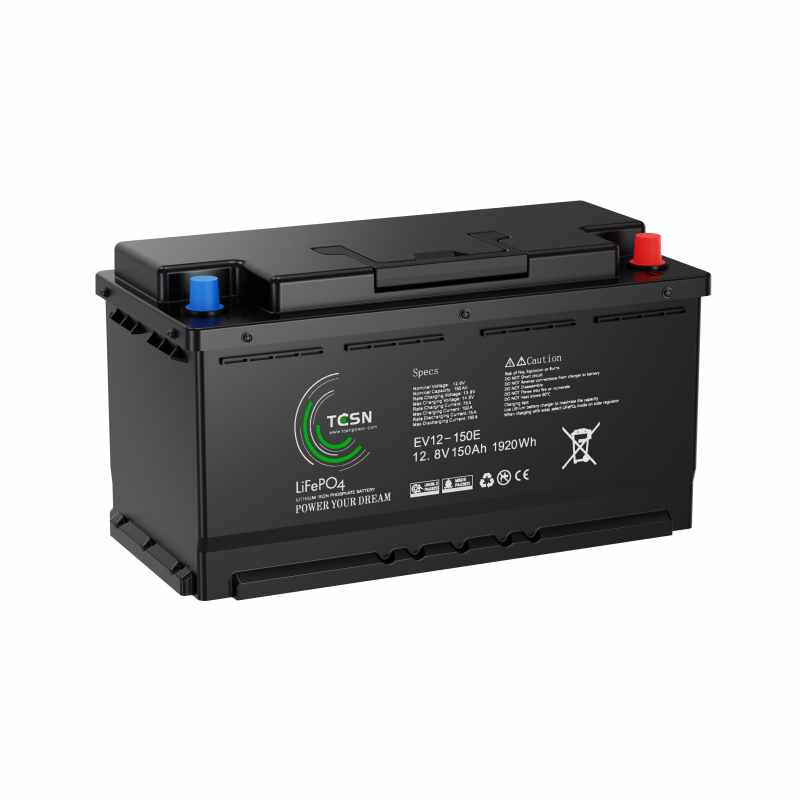

| EV12-150E | 12.8 | 150 | 355*175*189 | 15 | N | N | N | N | N | N |
| E24-6 | 25.6 | 6 | 151*65*97 | 1.3 | N | N | N | N | N | N |
| E24-50 | 25.6 | 50 | 260*168*209 | 9.5 | N | N | N | N | N | N |
| E24-100 | 25.6 | 100 | 483*170*240 | 18.5 | N | N | N | N | N | N |
| E24-200 | 25.6 | 200 | 522*238*223 | 37 | N | N | N | N | N | N |
Camping RVs, low-speed vehicles, small UPS, AGVs, ships, solar systems, washers, and other energy storage areas.
