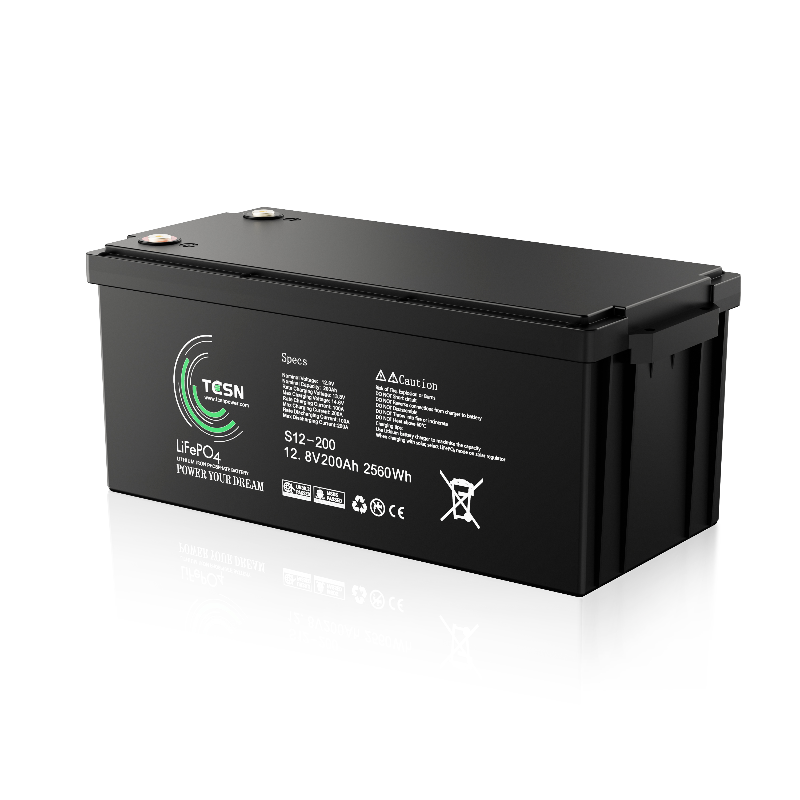

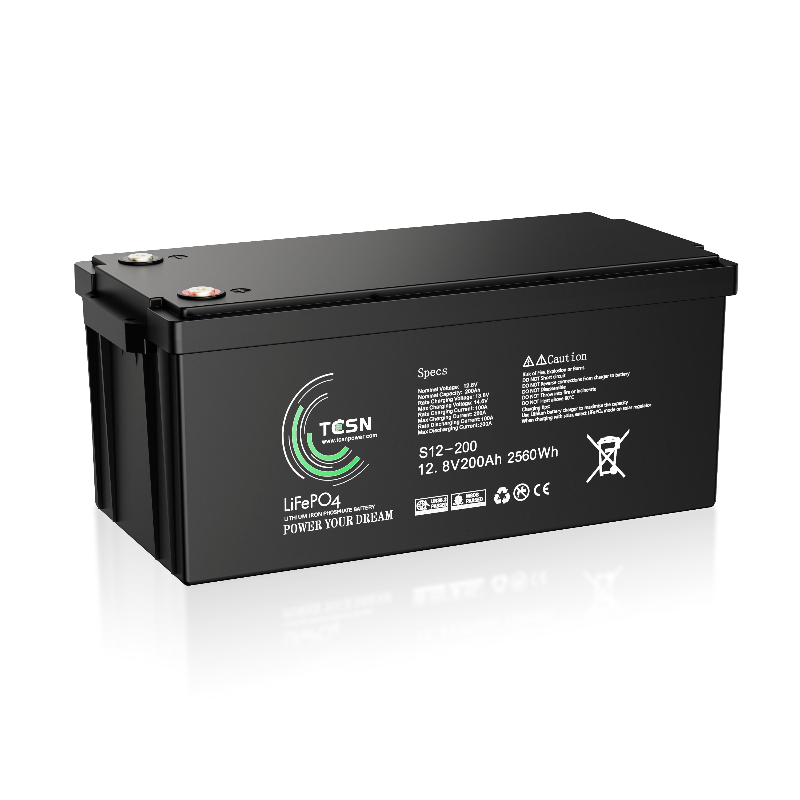

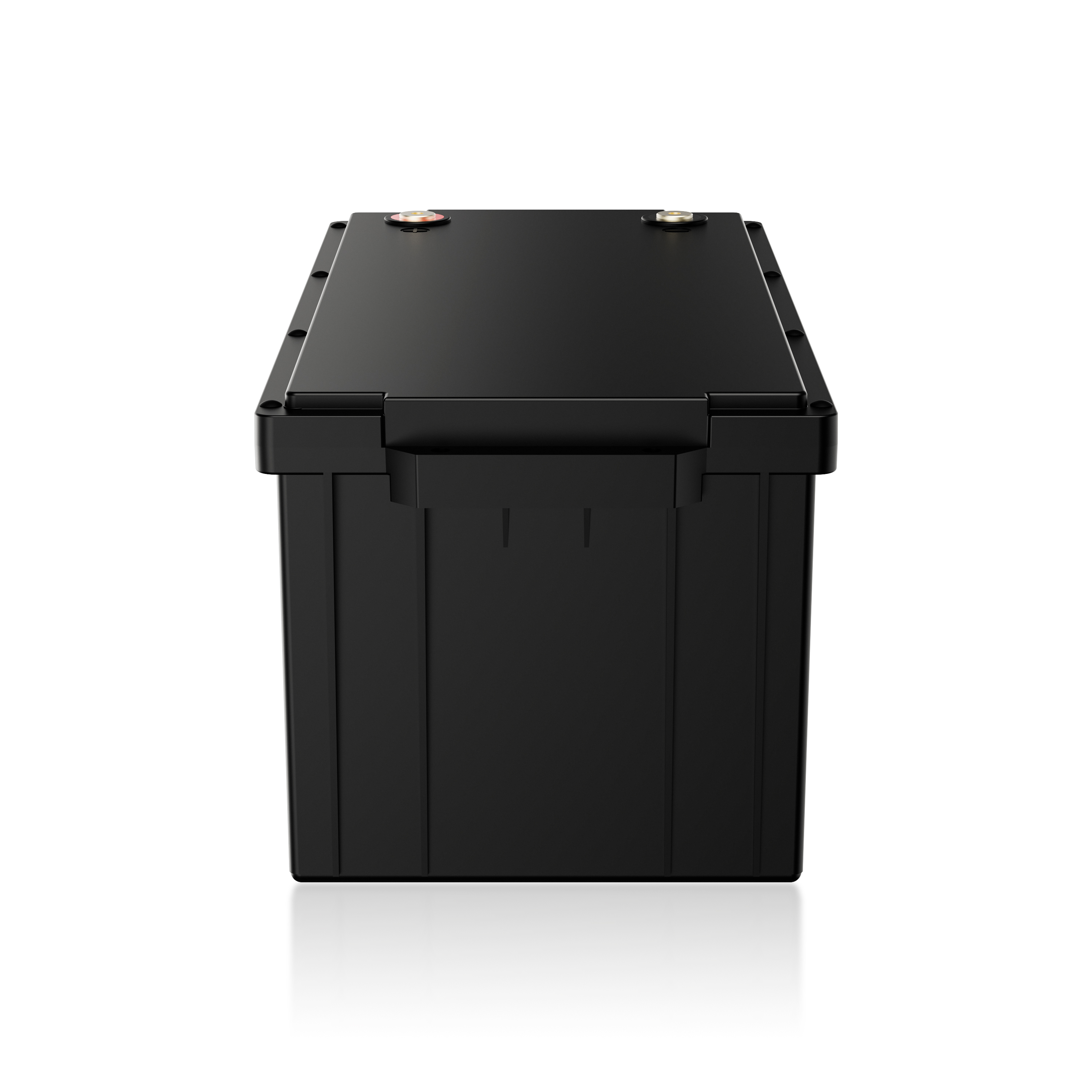

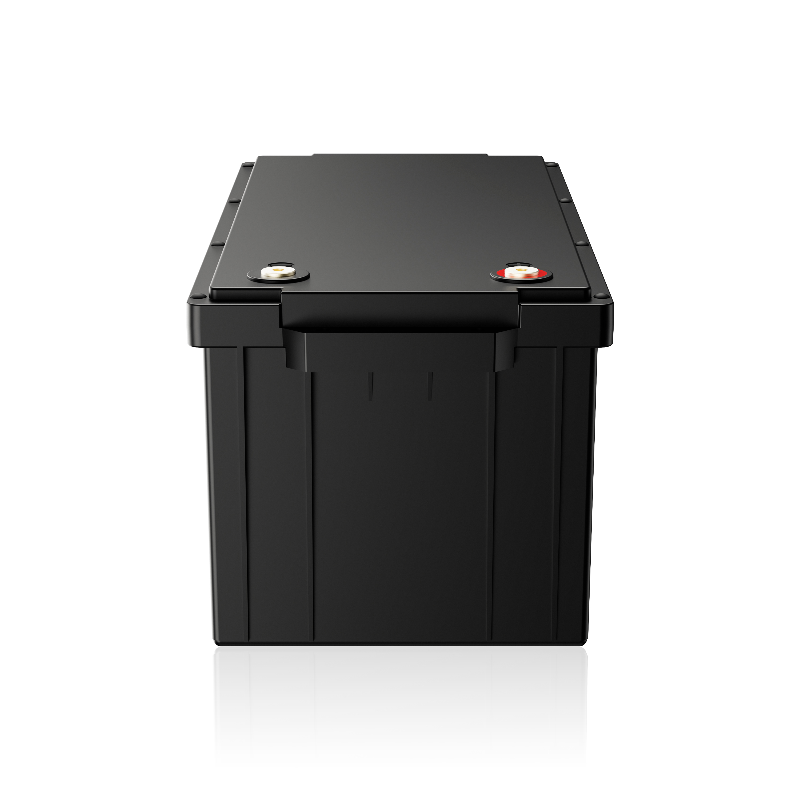

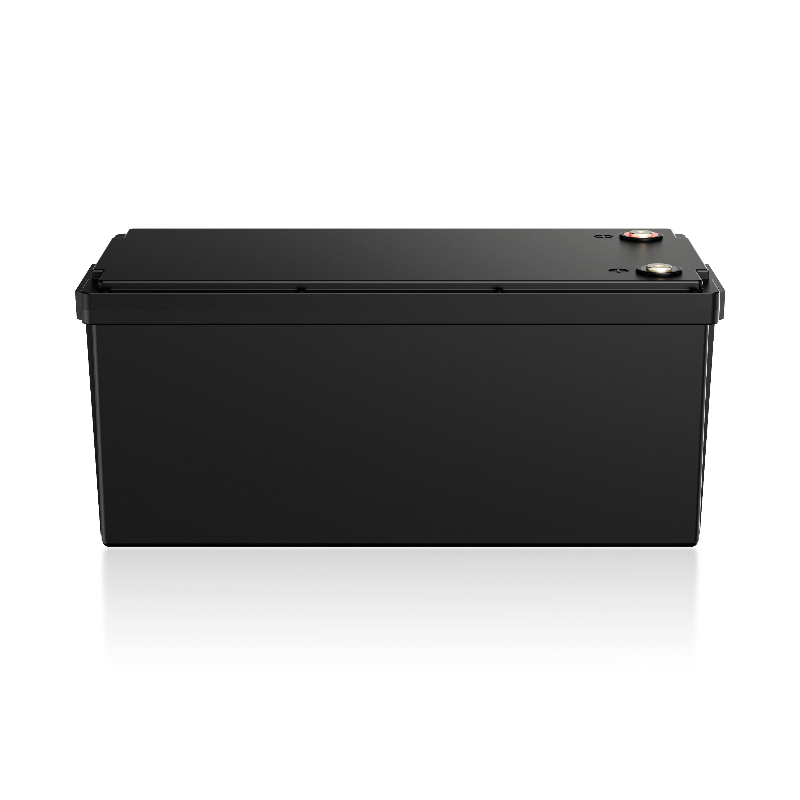

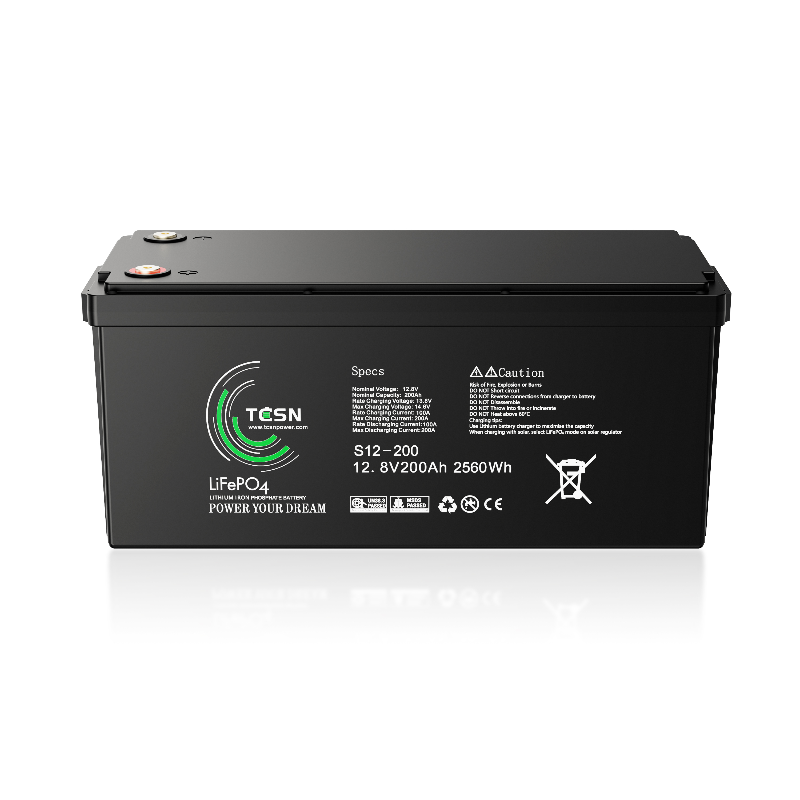

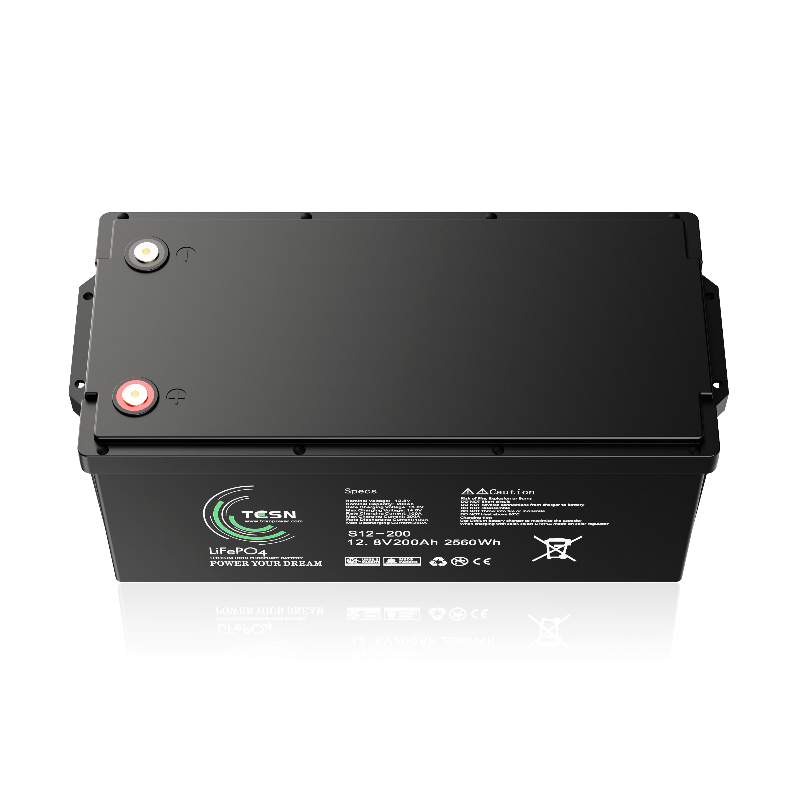

LEAD ACID Replacement S Series

TCSN power uses lithium-ion cells on the basis of retaining the appearance of standard lead-acid batteries to develop high-energy density, high-safety, and intelligent lithium-ion battery products.

Covers multiple voltage ranges such as 12V, 24V, 48V, etc. The product supports 6units in series and multiple groups in parallel; complete models; long service timesupports multiple customizations, and provide users with a full range of energy solutions.

Model	Voltage (V)	Capacity(Ah)	Dimension (WLH)	Weight(Kg)	Bluetooth	CAN	RS485	Heating	LCD	Active equalization
S12-100	12.8	100	306171215	10.5	P	P	P	P	P	P
S12-100A	12.8	100	330171220	11	P	P	P	P	P	P
S12-100B	12.8	100	330171220	11	P	P	P	P	P	P
S12-135	12.8	135	330171220	13.5	P	P	P	P	P	P
S12-150	12.8	150	330171220	15.5	P	P	P	P	P	P
S12-200	12.8	200	522238223	20.5	P	P	P	P	P	P
S12-200B	12.8	200	552110288	20	P	P	P	P	P	P
S12-230	12.8	230	522238223	22	P	P	P	P	P	P
S12-230M	12.8	230	345190245	21.5	P	P	P	P	P	P
S12-300	12.8	300	522238223	27	P	P	P	P	P	P
S12-300M	12.8	300	345190245	27	P	P	P	P	P	P
S12-460	12.8	460	522238223	40	P	P	P	P	P	P
S24-50	25.6	50	306171215	10.5	P	P	P	P	P	P
S24-100	25.6	100	522238223	20.5	P	P	P	P	P	P
S24-200	25.6	200	522238223	39	P	P	P	P	P	P
S24-230	25.6	230	522238223	40	P	P	P	P	P	P
S48-100	51.2	100	522238223	39	P	P	P	P	P	P

Camping RVs, low-speed vehicles, small UPS, AGVs, ships, solar systems, washers and other energy storage areas.
